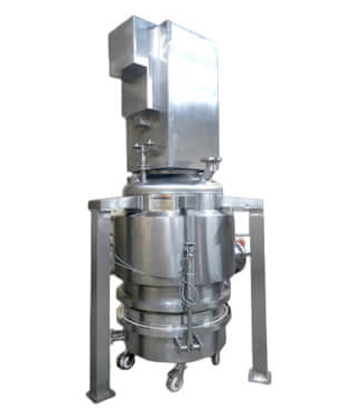

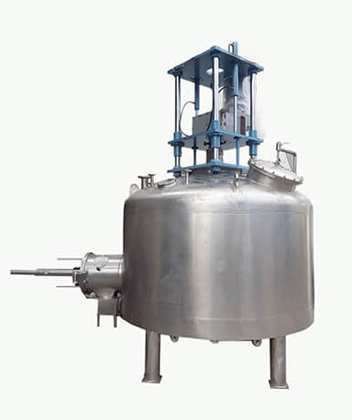

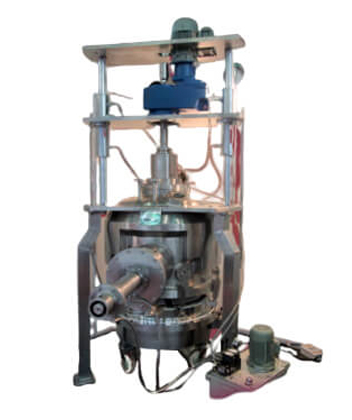

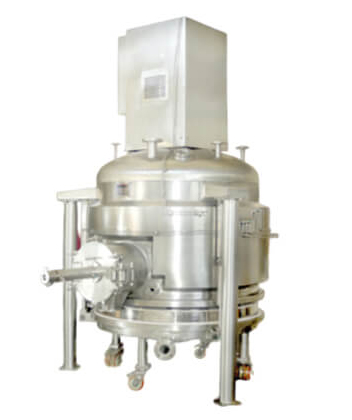

GENERAL DESCRIPTION

The Agitated Nutsche Filter consists of a cylindrical shell with top dished and flat bottom. We have 2 types of Filter Bed i.e., Monoblock type & Bottom detachable type. Agitator blades made in specially “S” curved to take high torque generated during solid discharge and re-slurring operation.

ADVANTAGES

The equipment is functionally safe and easy to operate
Minimum hold up of filtrate in the equipment
Reduced manpower & no manual handling of product
Agitator moves clockwise, anticlockwise, up and down. This ensures thorough washing and re-slurring of the cake.
Toxic and hazardous material can be processed
Product purity maintained
Blending of product possible before discharging
No manual handling between filtration and drying operation
Complete Automation with PLC based control

MOC

Stainless Steel
Carbon Steel
Hastelloy
Rubber or Plastic Coated Steel

Filter Media

Sintered metal
Multi-ply of Textile

Description:

Agitated Nutsche Filter is high-quality equipment designed for solid-liquid separation processes, by filtration under pressure, for the pharmaceutical, chemical, fine chemical and food industries. This is a combination of Filter and Dryer unit in single equipment to achieve economy in process and energy thereby improving profitability.

Technical Specification :

Model	Working Volume lts.	Max. Cake Volume lts.	Filtration surface sq.m	Motor H.P		Discharge Clearance	Vessel Size in (mm)		Overall Height-H
				Dryer	Filter		Diameter	Height
ANFD – 0.05KL	50	15	0.125	0.75	1	520	400	400	2000
ANFD – 0.10KL	100	35	0.166	1	1.5	520	460	620	2200
ANFD – 0.20KL	200	100	0.34	2	2	650	660	600	2500
ANFD – 0.30KL	300	155	0.51	2	3	700	850	600	2900
ANFD – 0.50KL	500	250	0.79	3	5	700	1000	650	3200
ANFD – 0.75KL	750	300	1.23	3	5	700	1250	620	3400
ANFD – 1.0KL	1000	500	1.13	5	5	700	1200	1000	3600
ANFD – 1.5KL	1500	750	1.76	7.5	7.5	700	1500	900	3750
ANFD – 2.0KL	2000	900	2.00	10	7.5	800	1600	1000	4300
ANFD – 3.0KL	3000	1350	3.05	10	10	800	1970	1000	4500
ANFD – 4.0KL	4000	1800	4.01	12.5	12.5	850	2260	1000	7600
ANFD – 5.0KL	5000	2250	5.00	15	15	900	2525	1000	4700
ANFD – 6.0KL	6000	2650	6.02	20	20	900	2770	1000	4800
ANFD – 7.5KL	7500	3400	7.54	20	25	900	3100	1000	4800
ANFD – 10KL	10000	4300	10.00	20	30	900	3570	1100	5400
ANFD – 15KL	15000	6500	12.56	25	40	900	4000	1250	6000

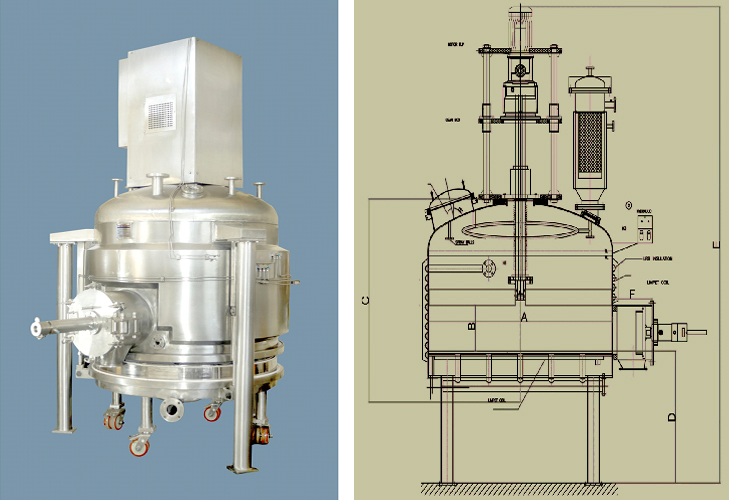

Agitated Nutsche Filter

Design Data

DESIGN CODES: ASME, IS, DIN

MATERIAL OF CONSTRUCTION:

Stainless steel, Hastelloy C-276, Hastelloy C-22, Hastelloy C, Tefzel, PFA, Halar lining, Monel etc,

FILTER MEDIA:

1) Multilayered Sintered wire mesh.
2) Filter cloth Natural or Synthetic fiber
3) Metallic Screens.

SHAFTSEALS:

1) Wet & Dry Mechanical Seals with metallic below.
2) Jacketed stuffing box with gland packing.
3) Metallic Screens.

CONTROLS PANEL

1) A trouble free and easy maintenance Hydraulic system :
1. • Discharge valve operation for labour-free cake removal
2. • Lowering and Lifting the agitator
3. • Lowering the detachable bottom when provided
4. • Driving the agitator, when hydraulic motor is used.
2) Limit Switches - to limit up and down movement of shaft, bottom bed and open/close of discharge valve.
3) The discharge valve is specially designed for leak proof operation and automatic cake discharge.
4) Non-bolted quick detachable bottom designs facilitate easy cleaning, quick changing of filter media, recommended for various products processing.The bottom bed is trolley mounted for easy movement.

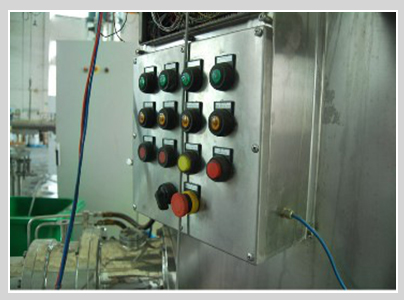

5) Control Panel – We provide Flame proof Control panel or as required.

Nutsche Filter/Dryer Applications

Not every separation process requires the level of technology provided by a Nutsche. Nutsche filter/dryers are best selected for applications with the following process requirements:

Precise temperature control
Risk of environmental hazard from toxic or flammable products
Reslurry washing
Absolute separation between the mother liquor and wash solutions
Delicate cakes (i.e. tend to crack easily)
