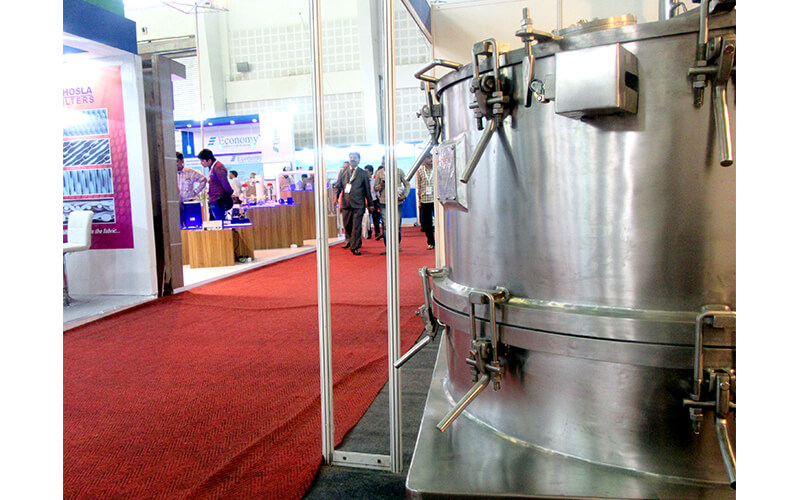

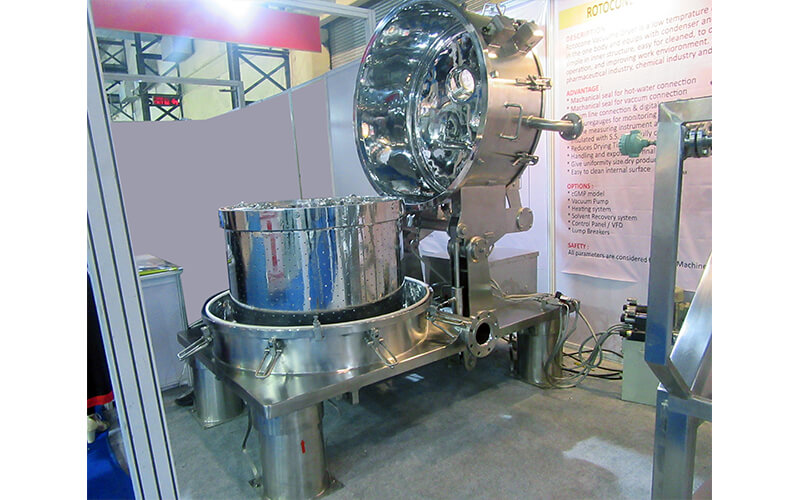

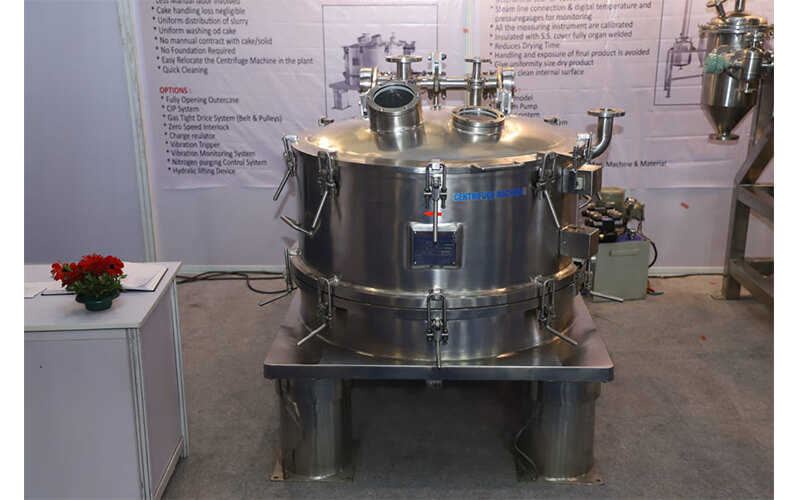

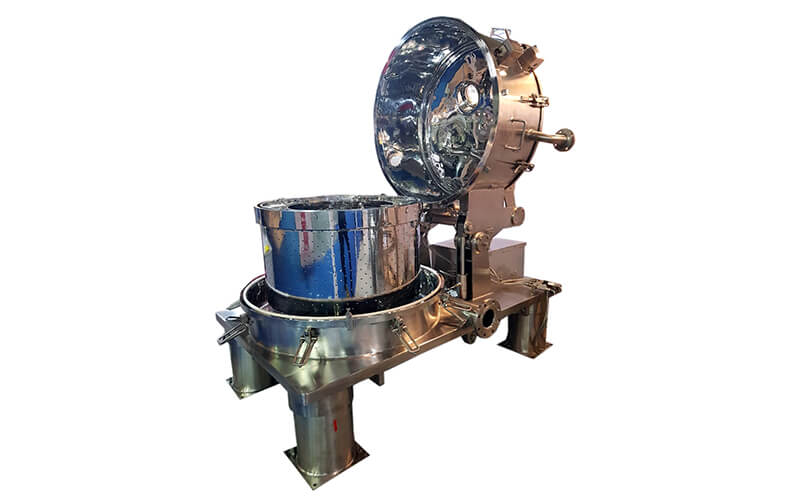

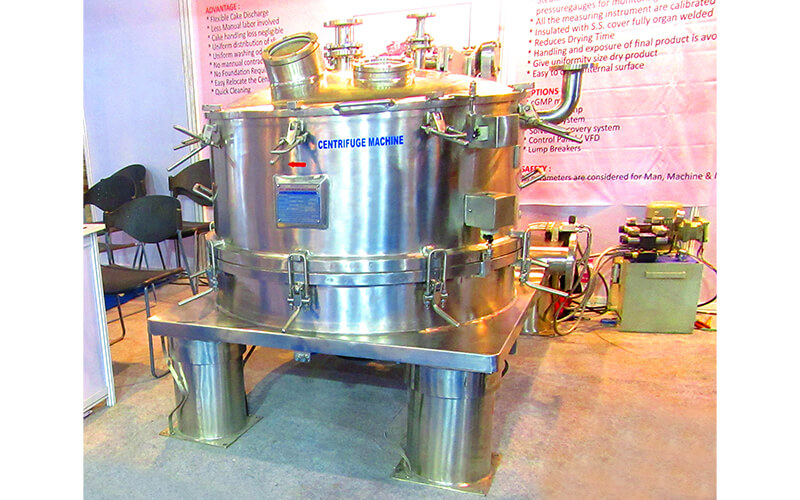

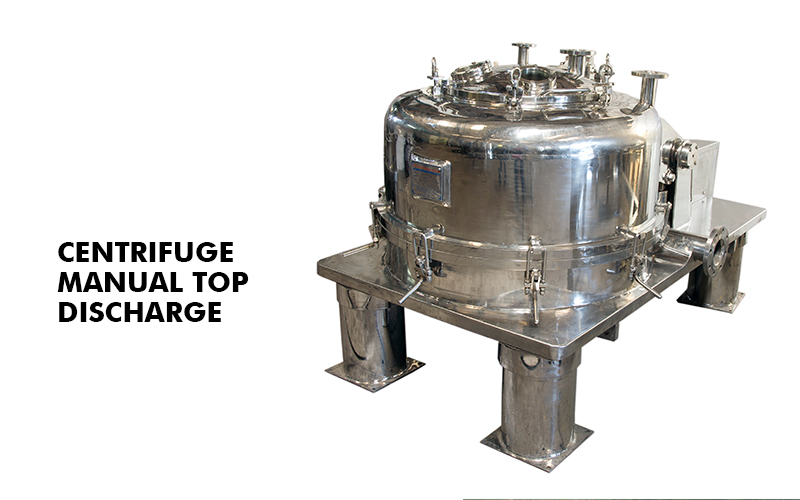

Manual Top Discharge Centrifuge

Description:

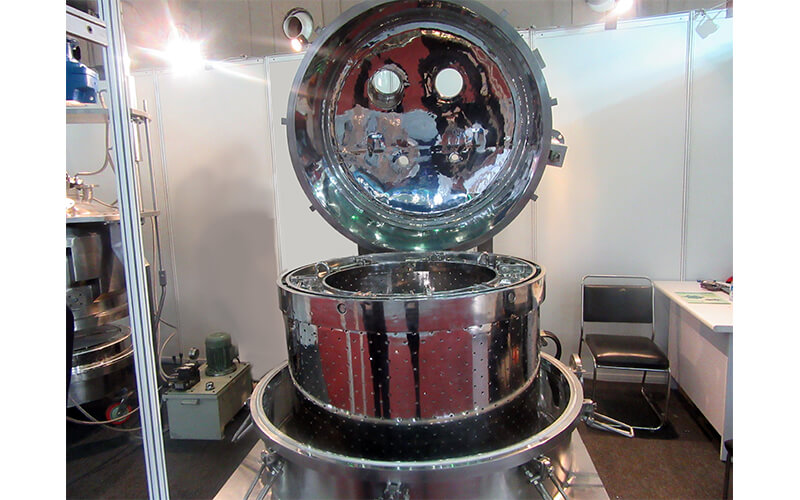

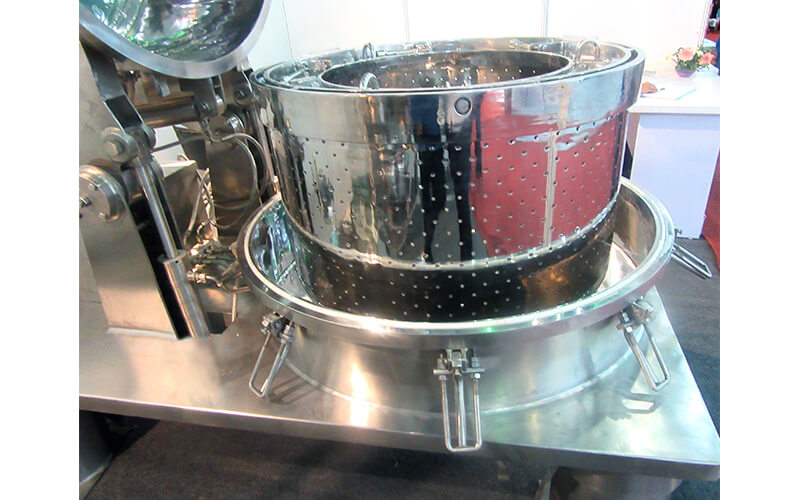

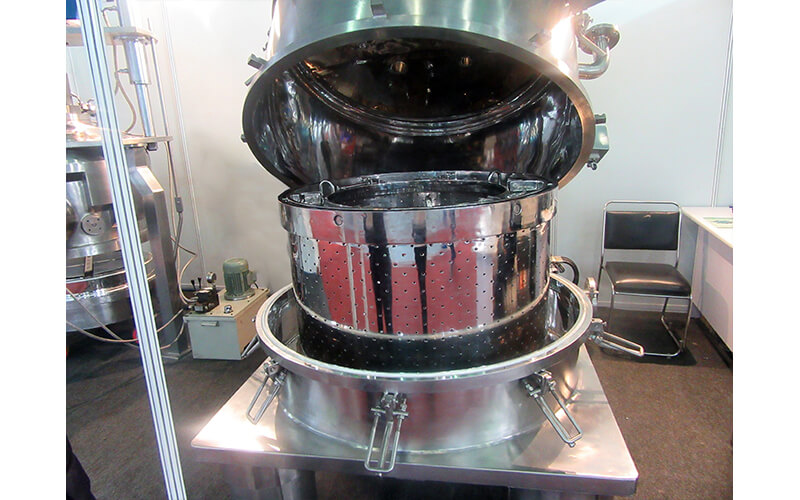

Manual Top Discharge Centrifuge Machine which are used for solid-liquid separation purpose. The solid material is scooped at manually from the top of the basket. This heavy duty centrifuges are manufactured using supreme quality raw material, which is obtained from certified vendor.

SAFETY FEATURES

    Zero Speed Interlock
  • The pneumatic cylinder will automatically get engaged with the lid as soon as basket starts rotating and gets disengaged only when it completely stops which will ensure that the lid can be opened only when the basket comes to a complete halt.
    • Proximity Sensor
  • Shall be provided as a safety interlock for the Lid / Body. Unless the Lid / Body is closed motor cannot start and once the lid is opened motor power cuts off.
    • Vibration Tripper
  • Will trip the Centrifuge during excessive vibration.
    • MOC
  • Stainless Steel
  • Carbon Steel
  • Hastelloy
  • Rubber Lined
  • Halar
  • Teflon Coated

  • Note: For any specific requirement for customization please feel free to contact us.

OPTIONS

  • Fully Opening Outer body
  • CIP system
  • Gas Tight Drive System (Belt & Pulleys)
  • Zero Speed Interlock
  • Charge regulator
  • Vibration Tripper

ADVANTAGE

  • Maximum use of basket
  • Uniform washing of cake
  • Uniform distribution of slurry
  • No foundation required
  • Easy relocate the centrifuge machine in the plant

    Technical Specification :

    Model Unit UCPM 24 MTD UCPM 36 MTD UCPM 48 MTD UCPM 60 MTD
    SH EH SH EH
    Basket Diameter mm. 610 910 1220 1220 1525 1525
    Basket Height mm. 300 460 460 610 460 610
    Working Capacity under Lip Lts. 50 170 300 400 450 610
    Basket Load (max.) Kgs. 63 200 380 500 600 700
    Max. Basket revolutions rpm 1400 1000 870 870 770 770
    Centrifugal Force G. 668 511 552 552 550 550
    Filtration Area m2 0.59 1.29 1.78 2.35 2.21 2.94
    Motor Power HP(KW) 3(2.2) 7.5(5.5) 15(11) 20(15)
    Overall Dimensions
    Length mm. 1350 1800 2150 2500
    Width mm. 1000 1220 1600 2000
    Operating Height mm. 1000 1400 1500 1650 1850 2050

TECHNICAL DATA

    Note:
    1. The centrifugal force relates to the basket diameter and maximum speed.
    2. Basket load in Kgs. will vary based on bulk Density of the material.
    3. We reserve the right to alter size, weight and design features.
    4. Lower / Higher Capacity models are available on request.
    5. SH – Standard Height, EH – Extra Height
